Visualization Tools for BGP Traceroutes

A Visual Analytics Tool to Investigate Routing Anomalies in Traceroutes

Routing in the Internet is vulnerable to attacks due to the insecure design of the border gateway protocol (BGP). One possible exploitation of this insecure design is the hijacking of IP blocks. Such hijacked IP blocks can then be used to conduct malicious activities from seemingly legitimate IP addresses. In this study we actively trace and monitor the routes to spam sources over several consecutive days after having received a spam message from such a source. However, the real challenge is to distinguish between legitimate routing changes and those ones that are related to systematic misuse in so-called spam campaigns.

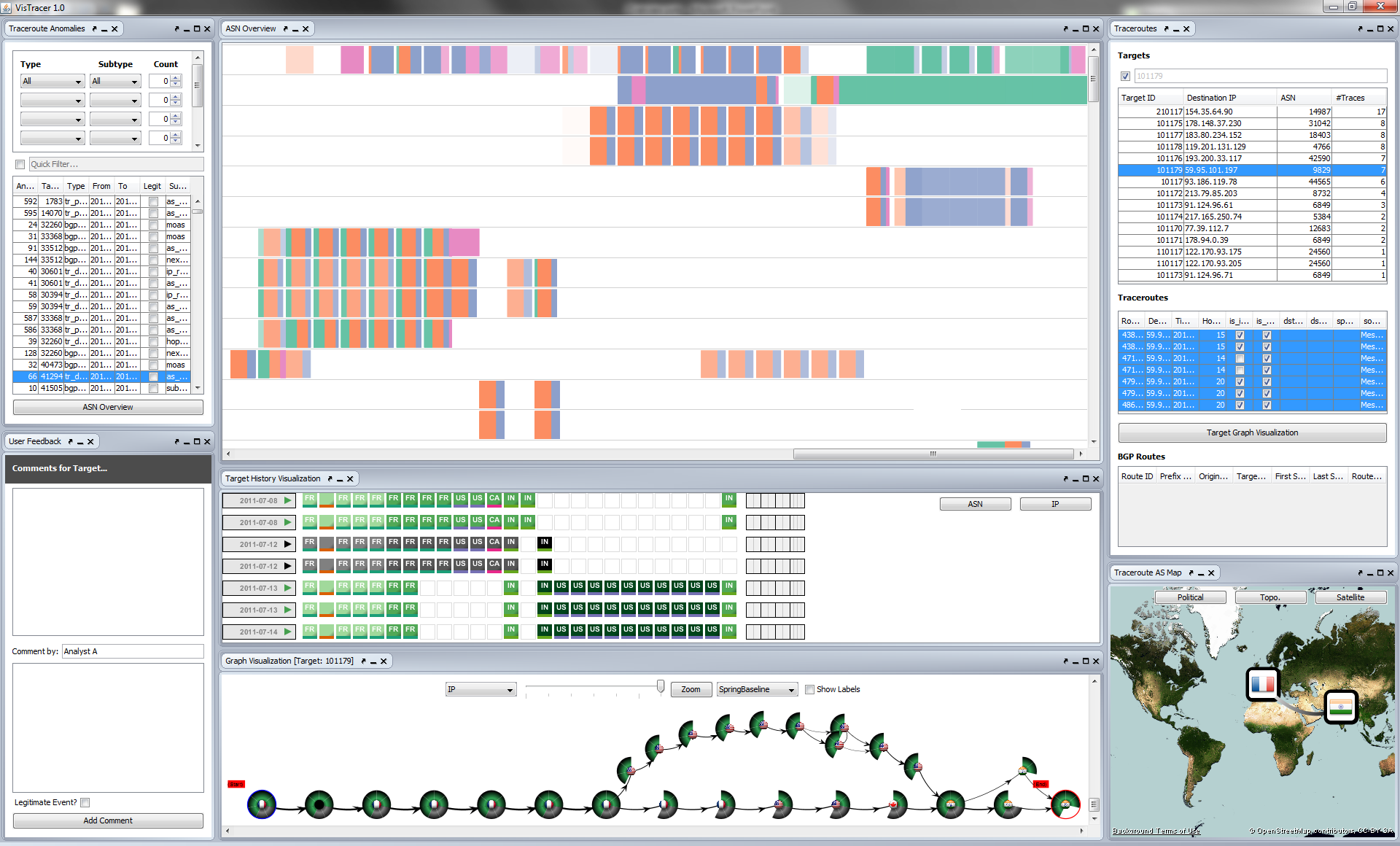

To combine the strengths of human judgement and computational efficiency, we thus present a novel visual analytics tool named VisTracer in 2012. This tool represents analysis results of our anomaly detection algorithms on large traceroute data sets with the help of several scalable representations to support the analyst to explore, identify and analyze suspicious events and their relations to malicious activities. In particular, pixel-based visualization techniques, novel glyph-based summary representations and a combination of temporal glyphs in a graph representation are used to give an overview of route changes to specific destinations over time. To evaluate our tool, real-world case studies demonstrate the usage of VisTracer in practice on large-scale data sets.

More information about this and related work can be found in the following publications.
